| Rahmen |
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
|
| Farbe |
actionteam, slabgrey´n´orange
|
| Größe |
L KW47/24, L KW49/24, M KW46/24, M KW47/24, XL KW07/25
|
| Steuersatz |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
|
| Laufräder |
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
|
| Dämpfer Hardware |
Front: 30x8mm, Rear: DU-Bushing 12,7mm
|

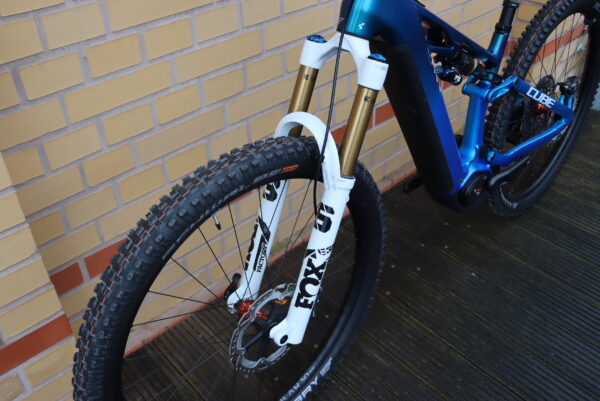

| Gabel |

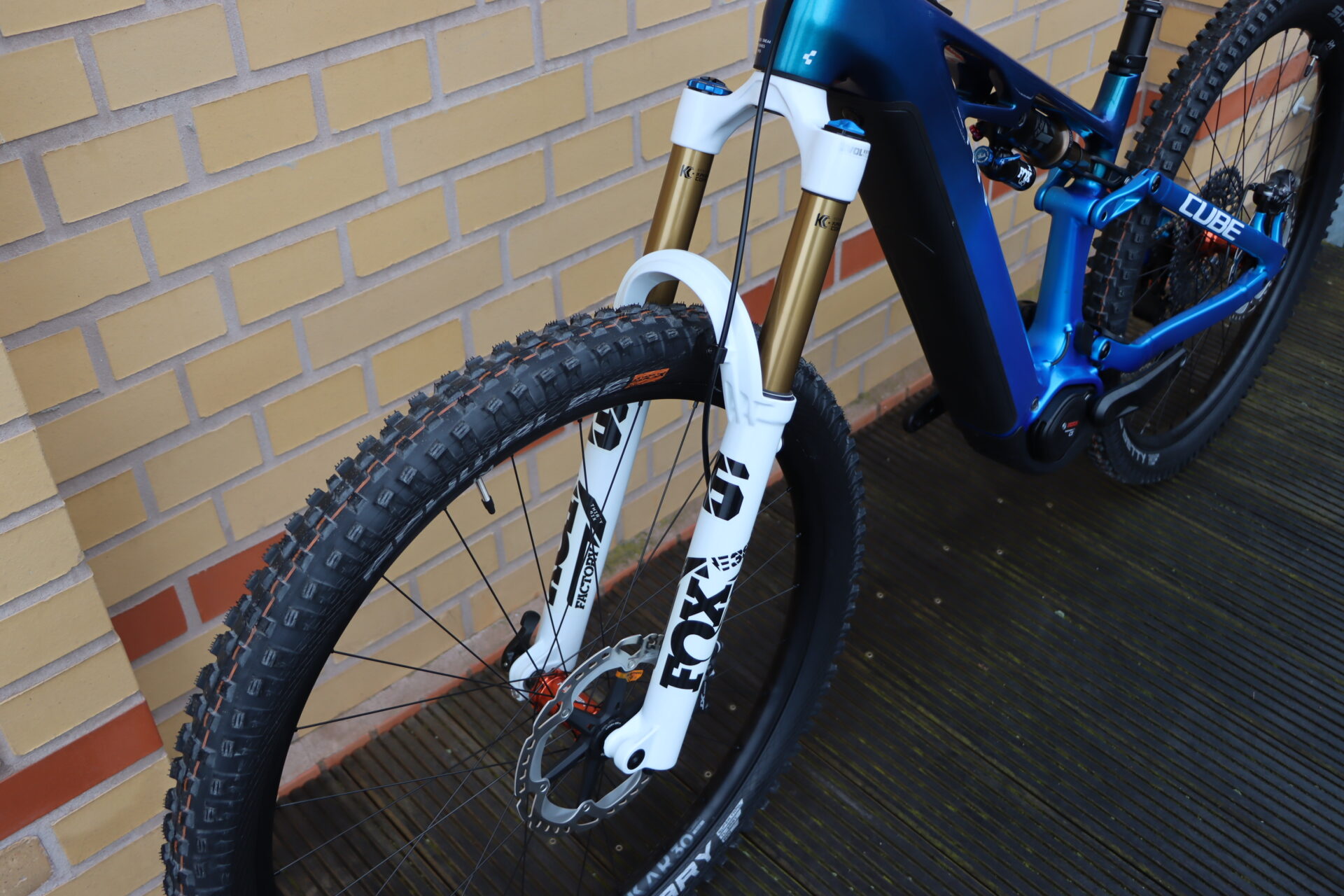

Fox 36 Float Factory GRIPX, 2-Position w/High/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated
|
| Motor |
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
|
| Remote |

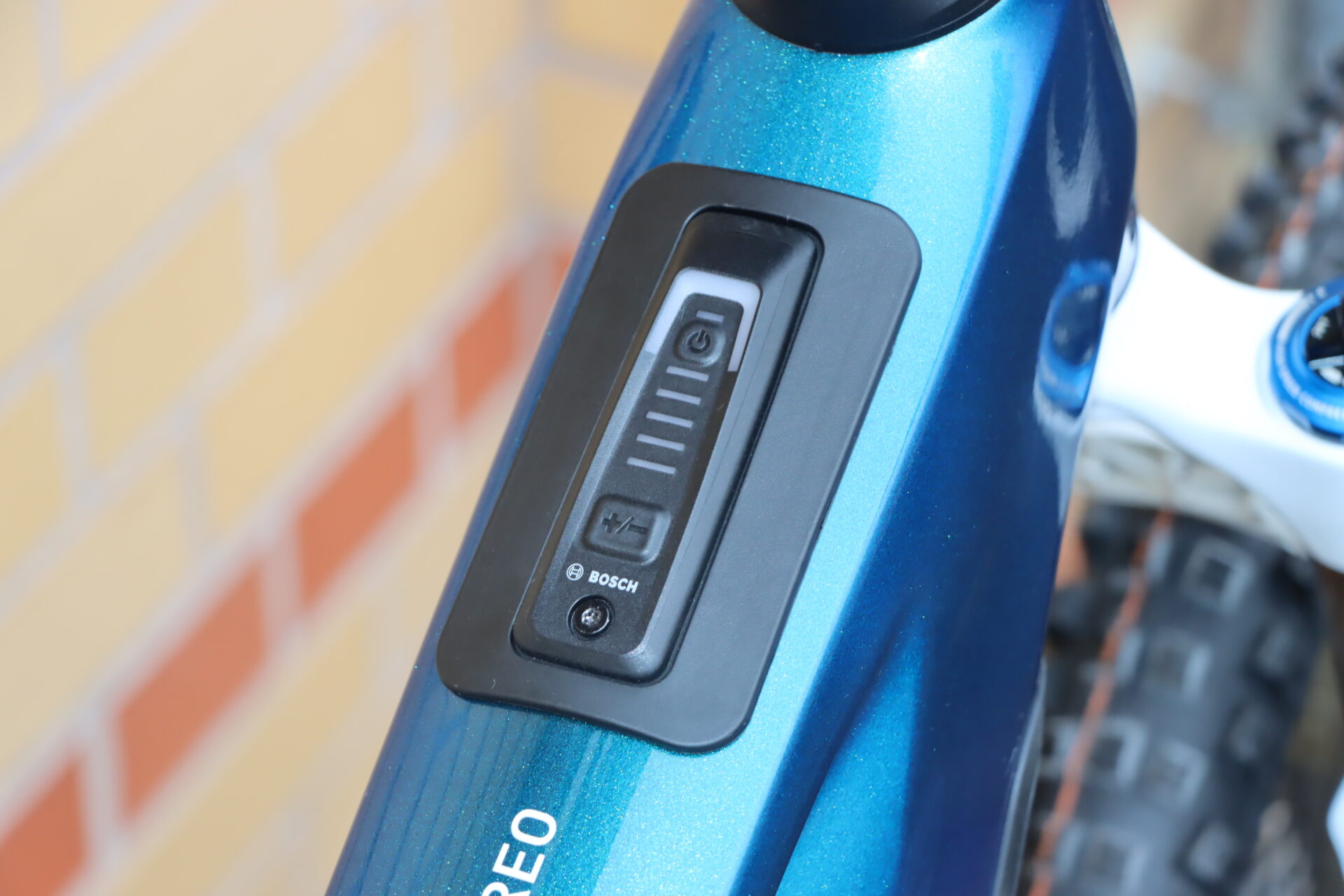

Bosch System Control, incl. Mini Remote
|
| Akku |
Bosch PowerTube 800
|
| Display |
Bosch Purion 400
|
| Ladegerät |
Bosch 4A
|

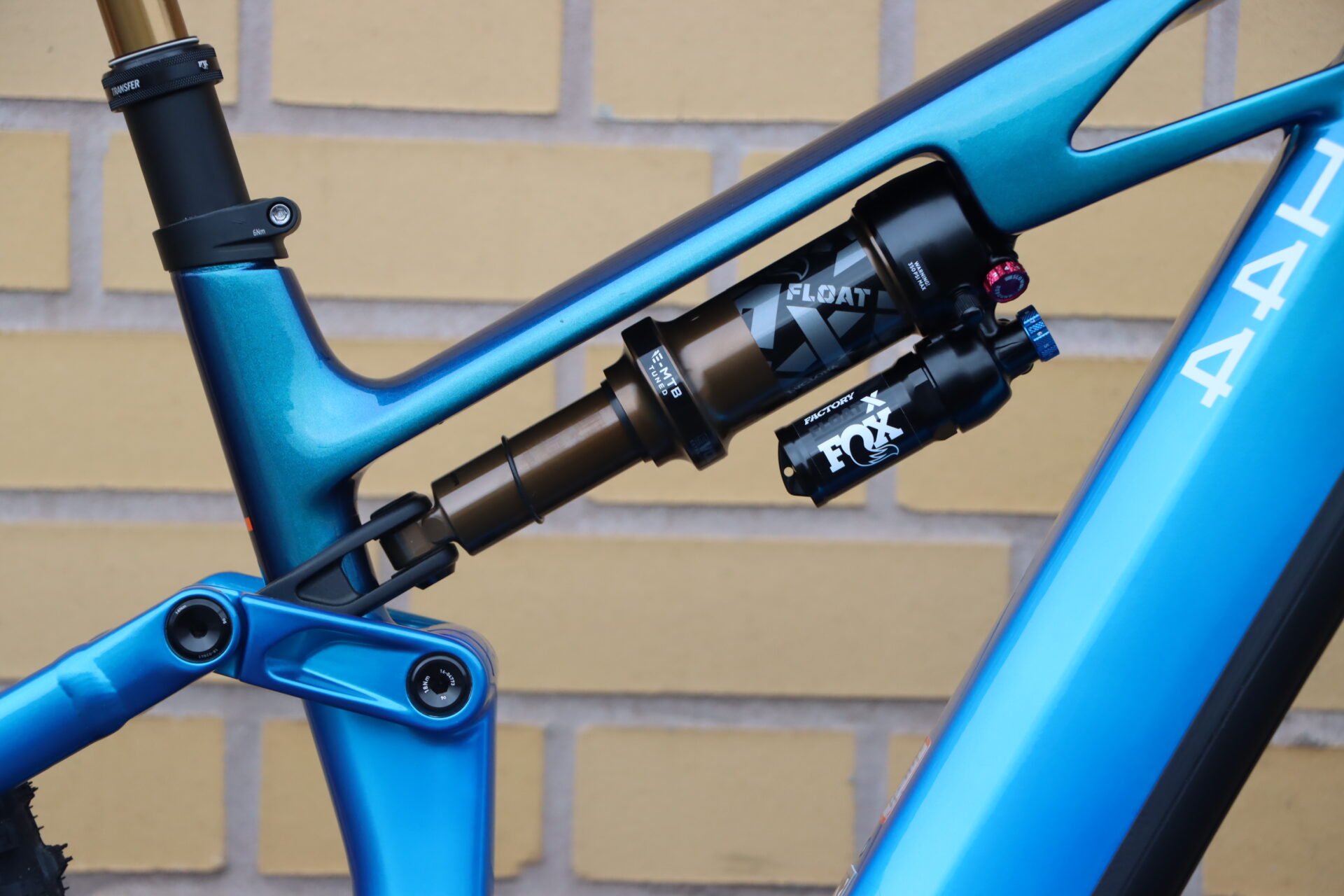

| Dämpfer |
Fox Float X Factory, 230x60mm (27.5: 210x55mm), Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
|
| Bremsen |
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
|
| Schaltwerk |

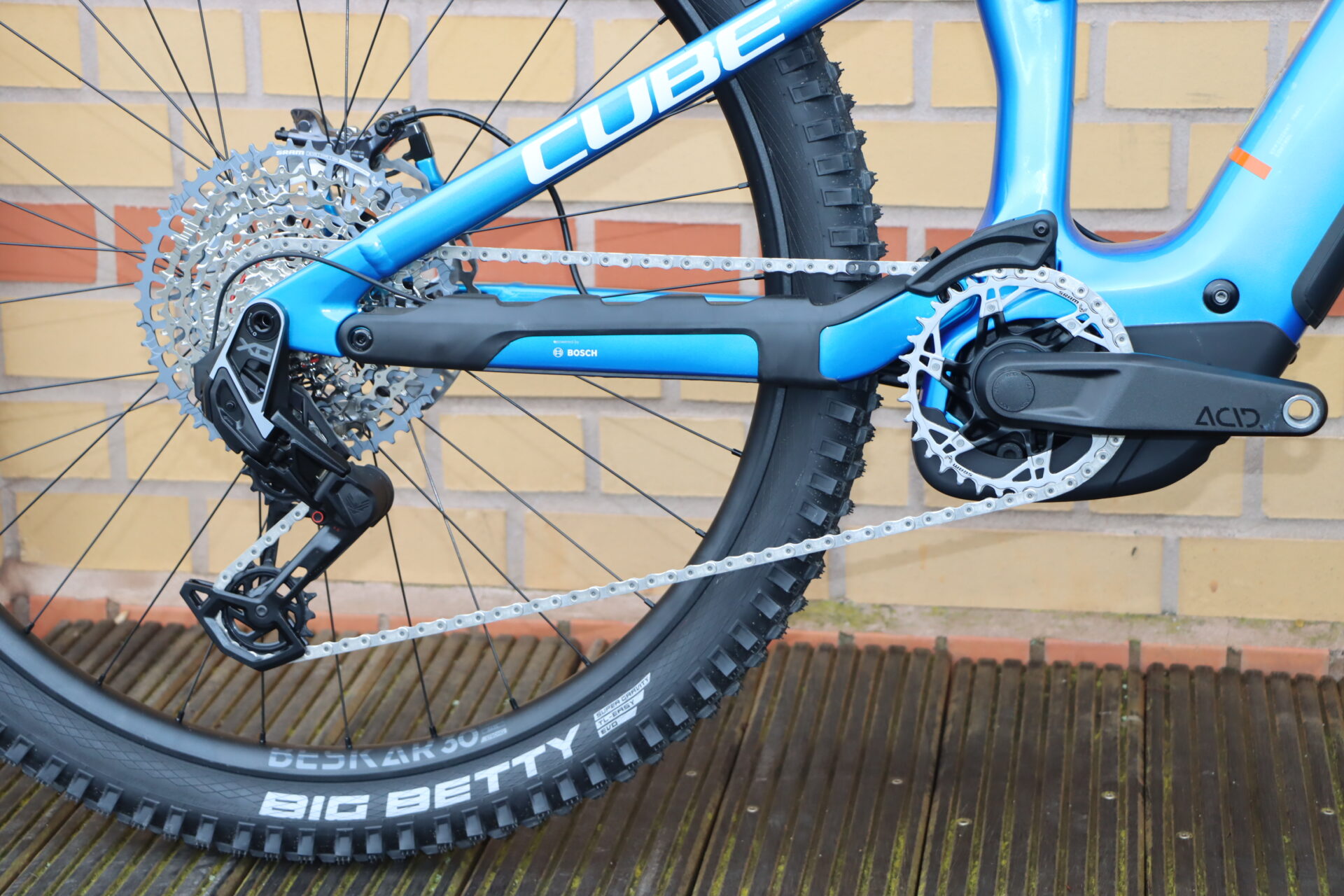

Sram X0 Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
|
| Schalthebel |
Sram AXS™ Pod Controller
|
| Kurbel |
ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
|
| Kassette |
Sram XS-1275, 10-52T
|
| Kette |
Sram GX Eagle™ Transmission
|
| Kettenführung |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
|
| Vorbau |
CUBE Performance Stem E-MTB 35, FPI-Link
|

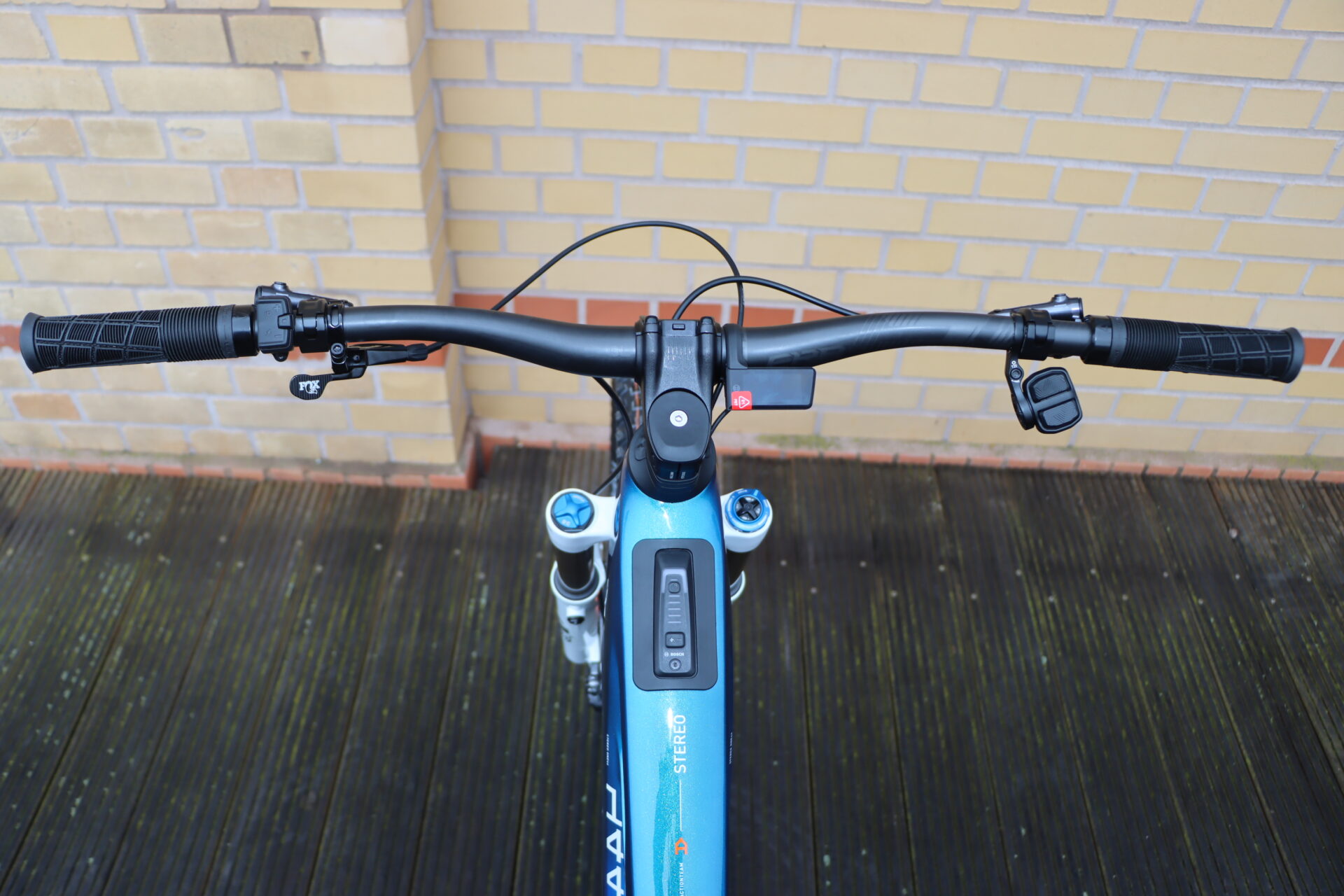

| Lenker |
Race Face ERA 35
|
| Griffe |
ACID Disrupt
|
| VR |
Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4
|
| HR |
Schwalbe Big Betty, Addix Soft, Super Gravity, Kevlar, 2.4
|

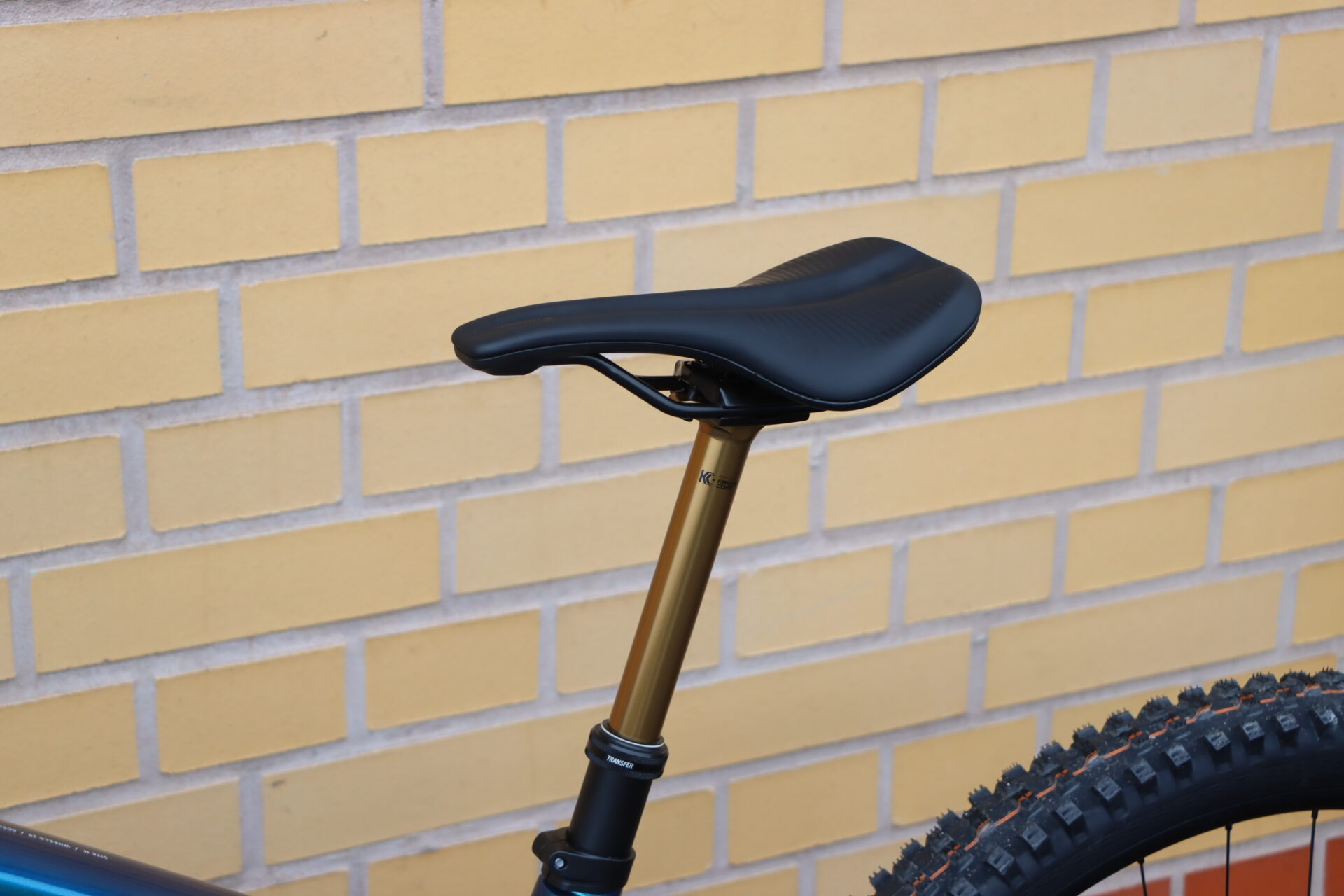

| Sattelstütze |
Fox Transfer Factory 31.6mm, Kashima Coated
|
| Sattel |
ACID Venec EMTB Trail 140
|
| Sattelklemme |
CUBE Semi-Integrated
|
| Gewicht |
23,9 kg
|
